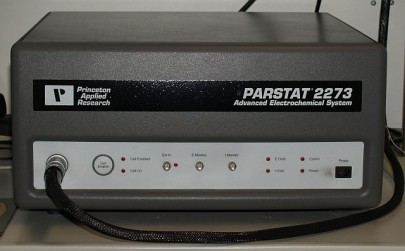

Princeton Applied Research PARSTAT 2273

Potentiostat, Galvanostat and Frequency Response Analyzer

The instrument is a potentiostat/galvanostat/frequency response analyzer combination, mainly used for corrosion research with the sample as the working electrode in a three-electrode setup.

Device Specifications

Voltage +!- 100 V
Max. current 2 A
Current resolution 1.2 fA
Current range 40 pA to 2 A
Frequency range 10 µHz to 1 MHz
