Humidity influence on mechanics of paper materials: joint numerical and experimental study on fiber and fiber network scale

Authors: Binbin Lin, Julia Auernhammer, Jan-Lukas Schäfer, Tobias Meckel, Robert Stark, Markus Biesalski and Bai-Xiang Xu

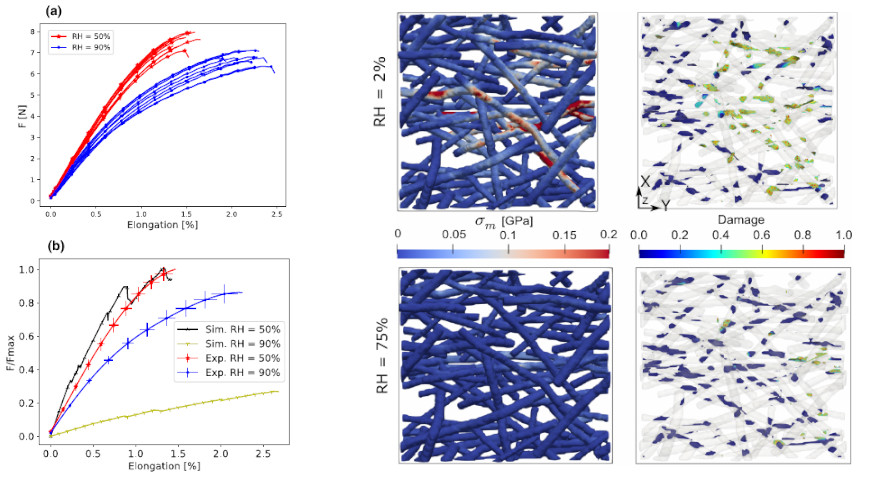

Paper materials are well-known to be hydrophilic unless chemical and mechanical processing treatments are undertaken. The relative humidity impacts the fiber elasticity, the interfiber joint behavior and the failure mechanism. In this work, we present a comprehensive experimental and computational study on mechanical properties of the fiber and the fiber network under humidity influence. The manually extracted cellulose fiber is exposed to different levels of humidity, and then mechanically characterized using atomic force microscopy, which delivers the humidity dependent longitudinal Young’s modulus. We describe the relation and calibrate the data into an exponential function, and the obtained relationship allows calculation of fiber elastic modulus at any humidity level. Moreover, by using confoncal laser scanning microscopy, the coefficient of hygroscopic expansion of the fibers is determined. We further present a finite element model to simulate the deformation and the failure of the fiber network. The model includes the fiber anisotropy and the hygroscopic expansion using the experimentally determined constants, and further considers interfiber behavior and debonding by using a humidity dependent cohesive zone interface model. Simulations on exemplary fiber network samples are performed to demonstrate the influence of different aspects including relative humidity and fiber-fiber bonding parameters on the mechanical features, such as force-elongation curve, strength and extensibility. Finally, we provide computational insights for interfiber bond damage pattern with respect to different humidity level as further outlook..

Article
