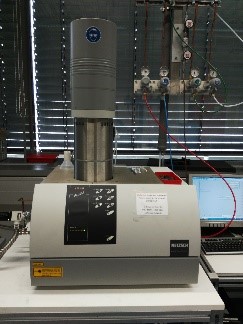

LFA 457 MicroFlash
Our LFA 457 can measure thermal diffusivity of bulk samples from room temperature to 1000 °C under different atmospheres (Ar, air, N2, and O2). With sample´s density and heat capacity, you will be able to obtain the sample´s thermal conductivity.
The measurement principle can be obtained from the original literatures: Parker et al [1] and Cowan et al [2].
[1] W. J. Parker, R. J. Jenkins, C. P. Butler, and G. L. Abbott, J. Appl. Phys. 32, 1679 (1961)
[2] Robert D. Cowan, Journal of Applied Physics 34, 926 (1963)
| Temperature: | RT – 1000 °C |
| Gas: | Ar, air, N2, O2, (If other gas is needed, please contact the responsible person.) |
| Sample dimension: |
square shape: 8 mm (width) x 8 mm (length) x 1-2 mm (thickness) 10 mm (width) x 10 mm (length) x 1-2 mm (thickness) round shape: diameter 6, 8, 10, 12.7 mm with thickness of 1-2 mm |
